Python绘制饼图、圆环图的实例

目录

• Python绘制饼图、圆环图
• 1.各品牌的销售数量饼图
• 2.各品牌销售数据圆环图
• 3.将数据少的合并为其它
• 4.其它类中展开
• 总结

import  pandas as pd
from matplotlib import pyplot as plt

#解决中文乱码
plt.rcParams['font.sans-serif'] = ['SimHei']

data=pd.read_excel(r'汽车销量数据数据.xlsx',sheet_name='Sheet1')

#根据各品牌去重

data_total_sale=data.loc[:,["品牌","总销量"]].drop_duplicates()
print(data_total_sale)
out:

    品牌    总销量
0   比亚迪  29000
4   特斯拉  17500
7    大众  12000
10   丰田  12000
13   奇瑞   2000
15   领克   1000

fig, ax = plt.subplots(figsize=(null, 7))
ax.pie(data_total_sale['总销量'],labels=data_total_sale['品牌'],autopct='%1.1f%%')
plt.show()

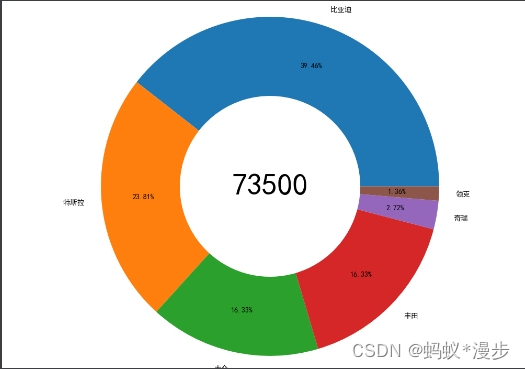

import  pandas as pd
from matplotlib import pyplot as plt

#解决中文乱码
plt.rcParams['font.sans-serif'] = ['SimHei']

data=pd.read_excel(r'汽车销量数据数据.xlsx',sheet_name='Sheet1')

#根据各品牌去重

data_total_sale=data.loc[:,["品牌","总销量"]].drop_duplicates()

total_sale=data_total_sale['总销量'].sum()

fig, ax = plt.subplots(figsize=(null, 7))

ax.pie(data_total_sale['总销量'], radius=1.5, wedgeprops={'width': 0.7}, labels = data_total_sale['品牌'], autopct='%3.2f%%',  pctdistance=0.75)  #保留2位小数
plt.text(null, 0, total_sale, ha='center', va='center', fontsize=28)
plt.show()

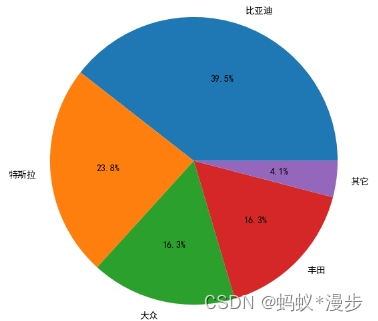

import  pandas as pd
from matplotlib import pyplot as plt

#解决中文乱码
plt.rcParams['font.sans-serif'] = ['SimHei']

data=pd.read_excel(r'汽车销量数据数据.xlsx',sheet_name='Sheet1')

#根据各品牌去重

data_total_sale=data.loc[:,["品牌","总销量"]].drop_duplicates()

others=["奇瑞","领克"]
data_new=data_total_sale.loc[~data['品牌'].isin(others)]
other_sum=data_total_sale['总销量'].loc[data['品牌'].isin(others)].sum()
data_new=data_new.append({"品牌":'其它',"总销量":other_sum},ignore_index=True)
fig, ax = plt.subplots(figsize=(null, 7))
ax.pie(data_new['总销量'],labels=data_new['品牌'],autopct='%1.1f%%')
plt.show()

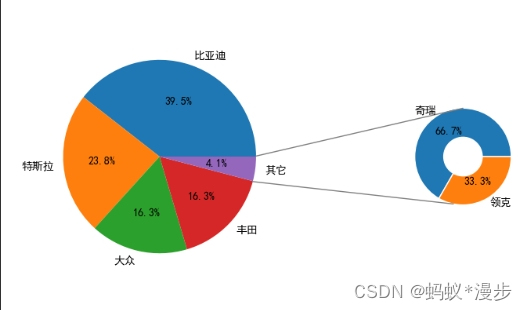

import  pandas as pd
from matplotlib import pyplot as plt
from matplotlib.patches import ConnectionPatch
from matplotlib import cm

#解决中文乱码
plt.rcParams['font.sans-serif'] = ['SimHei']

data=pd.read_excel(r'汽车销量数据数据.xlsx',sheet_name='Sheet1')

#根据各品牌去重

data_total_sale=data.loc[:,["品牌","总销量"]].drop_duplicates()

others=["奇瑞","领克"]
data_new=data_total_sale.loc[~data['品牌'].isin(others)]
other_sum=data_total_sale['总销量'].loc[data['品牌'].isin(others)].sum()
data_new=data_new.append({"品牌":'其它',"总销量":other_sum},ignore_index=True)
data_other=data_total_sale.loc[data['品牌'].isin(others)]
fig = plt.figure(figsize=(null,4))
ax1 = fig.add_subplot(null,2,1)
ax1.pie(data_new['总销量'],labels=data_new['品牌'],autopct='%1.1f%%')
ax2 = fig.add_subplot(null,2,2)
ax2.pie(data_other['总销量'],labels=data_other['品牌'],autopct='%1.1f%%',radius=0.5,wedgeprops=dict(width=0.3, edgecolor='w'))

theta1, theta2 = ax1.patches[-1].theta1+15, ax1.patches[-1].theta2-15
center, r = ax1.patches[-1].center,ax1.patches[-1].r
x = r*np.cos(np.pi/180*theta1)+center[0]
y = np.sin(np.pi/180*theta1)+center[1]
con1 = ConnectionPatch(xyA=(null, 0.5),xyB=(x,y),
                     coordsA=ax2.transData, coordsB=ax1.transData,axesA=ax2,axesB=ax1)

x = r * np.cos(np.pi / 180 * theta2) + center[0]
y = np.sin(np.pi / 180 * theta2) + center[1]
con2 = ConnectionPatch(xyA=(-0.1, -0.49),
                       xyB=(x, y),
                       coordsA=ax2.transData,
                       coordsB=ax1.transData,
                       axesA=ax2, axesB=ax1)
for con in [con1, con2]:
    con.set_color('gray')
    ax2.add_artist(con)
    con.set_linewidth(1)
fig.subplots_adjust(wspace=0)
plt.show()
