我的原创博文：https://www.prudkohliad.com/articles/deploy-next-js-to-vps-using-sst-2024-08-11
sst 是一个框架，可以让您轻松在自己的基础设施上构建现代全栈应用程序。 sst v3 使用 pulumi 和 terraform – sst 文档
在本指南中，我们将使用 sst 和 docker 在 hetzner vps 上部署 next.js 应用程序。本指南是我上一篇文章的后续内容。如果您在这里发现一些没有意义的内容，您很有可能会在那里找到答案 - 如何使用 docker 和 github actions 将 next.js 应用程序部署到 hetzner 上的 vps。
要将 sst 添加到项目中，请运行以下命令：
pnpx sst@ion init
这将显示一个交互式提示。选择“是”，然后选择“aws”：
确保安装了所有必需的软件包：
pnpm install
这将创建 sst.config.ts 文件，我们将在其中添加所有配置。
此外，还会创建一些其他文件/目录。让我们将它们添加到 .dockerignore，我们不希望它们最终成为 docker 镜像：
# sst .sst sst.config.ts tsconfig.json
这就是 sst 配置文件当前的样子：
/// <reference path="./.sst/platform/config.d.ts"></reference>
export default $config({
app(input) {
return {
name: "next-self-hosted",
removal: input?.stage === "production" ? "retain" : "remove",
home: "aws",
};
},
async run() {},
});
我们不打算使用aws，所以让我们将home参数设置为“local”：
/// <reference path="./.sst/platform/config.d.ts"></reference>
export default $config({
app(input) {
return {
name: "next-self-hosted",
removal: input?.stage === "production" ? "retain" : "remove",
home: "local",
};
},
async run() {},
});
现在可以开始向 run() 函数添加东西了。
为了使用 sst 在 hetzner 上创建 vps，我们需要一个 hetzner api 令牌。让我们生成一个新的。

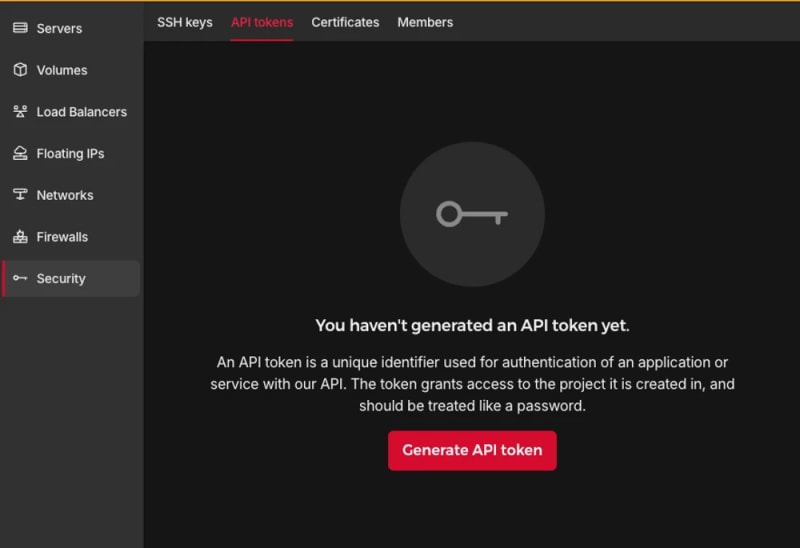

在 hetzner 控制台中打开项目，导航到“安全”选项卡：

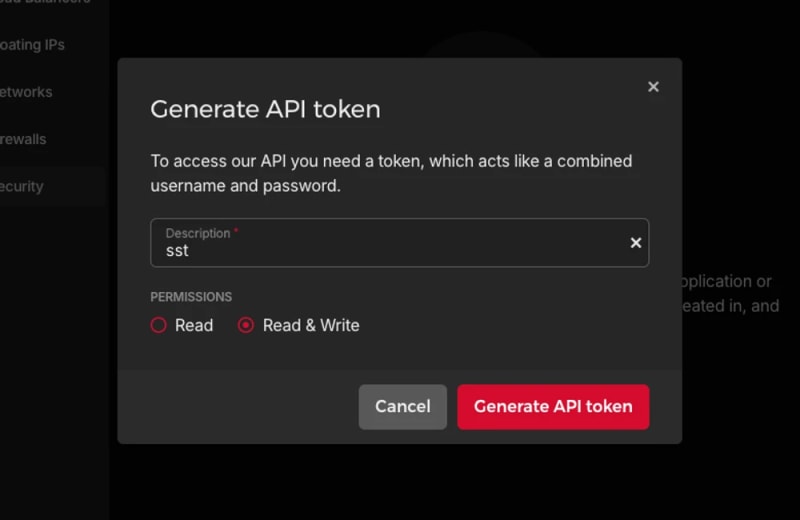

生成 api 令牌：

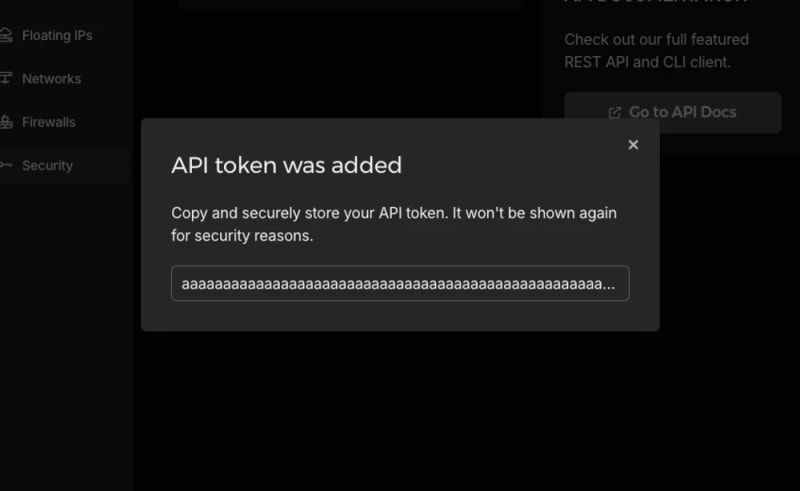

新的代币将添加到您的项目中：
令牌只会显示一次，请确保不要丢失。
添加 tls 和 hetzner 提供商：
pnpm sst add tls pnpm sst add hcloud pnpm install
为了在创建 hetzner vps 后执行进一步的命令，我们需要确保在创建过程中添加了 ssh 密钥。为此，我们将在本地创建一个 ssh 令牌，然后将其公共部分添加到 hetzner。在run函数中添加以下代码：
// in the run() function:
// generate an ssh key
const sshkeylocal = new tls.privatekey("ssh key - local", {
algorithm: "ed25519",
});
// add the ssh key to hetzner
const sshkeyhetzner = new hcloud.sshkey("ssh key - hetzner", {
publickey: sshkeylocal.publickeyopenssh,
});
部署应用程序：
pnpm sst deploy sst ❍ ion 0.1.90 ready! ➜ app: next-self-hosted stage: antonprudkohliad ~ deploy | created ssh key - local tls:index:privatekey | created ssh key - hetzner hcloud:index:sshkey ✓ complete
您将看到一个新的 ssh 密钥已添加到 hetzner 中：
现在我们可以继续创建 vps 了。
以下命令将确保在您的项目中创建新的 vps：
// in the run() function:
// create a server on hetzner
const server = new hcloud.server("server", {
image: "docker-ce",
servertype: "cx22",
location: "nbg1",
sshkeys: [sshkeyhetzner.id],
});
这里我使用 docker-ce 镜像，因为它已经安装了 docker。您可以使用 hetzner cloud api 列出所有可用的图像、服务器类型和数据中心。
验证服务器是否正确创建：
pnpm sst deploy sst ❍ ion 0.1.90 ready! ➜ app: next-self-hosted stage: antonprudkohliad ~ deploy | created server hcloud:index:server (34.5s) ✓ complete

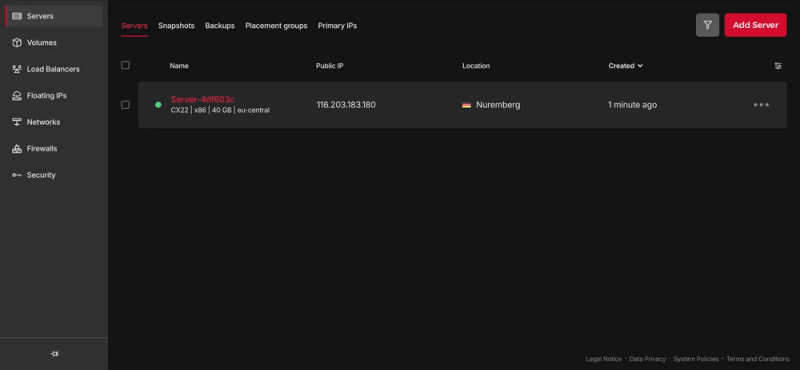

您还应该能够在控制台中看到新创建的服务器：
为了在 vps 上构建应用程序 docker 镜像并能够创建网络、卷和容器，我们需要在本地计算机和 vps 上的 docker server 之间建立一座桥梁。为此，我们需要 docker 提供商：
pnpm sst add docker pnpm install
将 ssh 私钥存储在磁盘上，以便 ssh 客户端可以访问它。创建与 vps 上 docker 服务器的连接：
// at the top of the file:
import { resolve as pathresolve } from "node:path";
import { writefilesync as fswritefilesync } from "node:fs";
// in the run() function:
// store the private ssh key on disk to be able to pass it to the docker
// provider
const sshkeylocalpath = sshkeylocal.privatekeyopenssh.apply((k) => {
const path = "id_ed25519_hetzner";
fswritefilesync(path, k, { mode: 0o600 });
return pathresolve(path);
});
// connect to the docker server on the hetzner server
const dockerserverhetzner = new docker.provider("docker server - hetzner", {
host: $interpolate`ssh://root@${server.ipv4address}`,
sshopts: ["-i", sshkeylocalpath, "-o", "stricthostkeychecking=no"],
});
确保还将 ssh 私钥 id_ed25519_hetzner 添加到 .gitignore 和 .dockerignore，这样它就不会进入您的 github 存储库和 docker 镜像。
触发部署以验证更改：
pnpm sst deploy sst ❍ ion 0.1.90 ready! ➜ app: next-self-hosted stage: antonprudkohliad ~ deploy | created docker server - hetzner pulumi:providers:docker ✓ complete
现在我们可以在删除的 docker 服务器上构建 docker 镜像了：
// in the run() function:
// build the docker image
const dockerimagehetzner = new docker.image(
"docker image - app - hetzner",
{
imagename: "next-self-hosted/next-self-hosted:latest",
build: {
context: pathresolve("./"),
dockerfile: pathresolve("./dockerfile"),
target: "production",
platform: "linux/amd64",
},
skippush: true,
},
{
provider: dockerserverhetzner,
dependson: [server],
}
);
让我们触发部署看看一切是否正常：
pnpm sst deploy sst ❍ ion 0.1.90 ready! ➜ app: next-self-hosted stage: antonprudkohliad ~ deploy | log starting docker build | log image built successfully, local id "sha256:629a6cdfc298c74599a3056278e31c64197a87f6d11aab09573bc9171d2f3362" | created docker image - app - hetzner docker:index:image (36.0s) ✓ complete
现在，让我们检查 docker 镜像是否已到达服务器：
ssh root@116.203.183.180 -i ./id_ed25519_hetzner -o stricthostkeychecking=no -c "docker image ls" repository tag image id created size next-self-hosted/next-self-hosted latest 629a6cdfc298 about a minute ago 712mb
太棒了！
我们将创建两个网络：公共网络和内部网络。公共网络用于 nginx 连接的服务，即必须暴露于外部的服务（例如 next.js 应用程序或 api 服务器）。内部网络用于不应该暴露给外部的服务，例如postgres数据库、redis缓存：
// in the run() function:
// setup docker networks
const dockernetworkpublic = new docker.network(
"docker network - public",
{ name: "app_network_public" },
{ provider: dockerserverhetzner, dependson: [server] }
);
const dockernetworkinternal = new docker.network(
"docker network - internal",
{ name: "app_network_internal" },
{ provider: dockerserverhetzner, dependson: [server] }
);
触发部署：
pnpm sst deploy sst ❍ ion 0.1.90 ready! ➜ app: next-self-hosted stage: antonprudkohliad ~ deploy | created docker network - public docker:index:network (2.3s) | created docker network - internal docker:index:network (3.1s) ✓ complete
检查网络 app_network_internal 和 app_network_public 是否存在于远程：
ssh root@116.203.183.180 -i ./id_ed25519_hetzner -o stricthostkeychecking=no -c "docker network ls" network id name driver scope 0590360bd4ae app_network_internal bridge local e3bd8be72506 app_network_public bridge local 827fa5ca5de2 bridge bridge local dc8880514199 host host local f1481867db18 none null local
我们将创建一个卷来存储应用程序构建文件（.next 文件夹）：
// in the run() function:
// setup docker volumes
const dockervolumeappbuild = new docker.volume(
"docker volume - app build",
{ name: "app_volume_build" },
{ provider: dockerserverhetzner, dependson: [server] }
);
部署并验证 docker 卷 app_volume_build 是否存在于 vps 上：
pnpm sst deploy sst ❍ ion 0.1.90 ready! ➜ app: next-self-hosted stage: antonprudkohliad ~ deploy | created docker volume - app build docker:index:volume ✓ complete ssh root@116.203.183.180 -i ./id_ed25519_hetzner -o stricthostkeychecking=no -c "docker volume ls" driver volume name local app_volume_build
我们将运行一个一次性容器（也称为 init 容器）来构建 next.js 应用程序并将结果存储在 .next 文件夹中，该文件夹将通过我们上面创建的卷与主应用程序容器共享:
// in the run() function:
// run a one-off container to build the app
const dockerappbuildcontainer = new docker.container(
"docker container - app build",
{
name: "app_container_build",
image: dockerimagehetzner.imagename,
volumes: [
{
volumename: dockervolumeappbuild.name,
containerpath: "/app/.next",
},
],
command: ["pnpm", "build"],
mustrun: true,
},
{
provider: dockerserverhetzner,
}
);
部署并通过日志验证构建是否成功：
pnpm sst deploy sst ❍ ion 0.1.90 ready! ➜ app: next-self-hosted stage: antonprudkohliad ~ deploy | created docker container - app build docker:index:container (1.1s) ✓ complete ssh root@116.203.183.180 -i ./id_ed25519_hetzner -o stricthostkeychecking=no -c "docker logs -f app_container_build" > next-self-hosted@ build /app > next build ▲ next.js 14.2.5 creating an optimized production build ... ✓ compiled successfully linting and checking validity of types ... collecting page data ... generating static pages (0/4) ... generating static pages (1/4) generating static pages (2/4) generating static pages (3/4) ✓ generating static pages (4/4) finalizing page optimization ... collecting build traces ... route (app) size first load js ┌ ○ / 142 b 87.2 kb └ ○ /_not-found 871 b 87.9 kb + first load js shared by all 87 kb ├ chunks/52d5e6ad-40eff88d15e66edb.js 53.6 kb ├ chunks/539-e1fa9689ed3badf0.js 31.5 kb └ other shared chunks (total) 1.84 kb ○ (static) prerendered as static content
现在我们将添加一个“runner”容器，它将使用构建容器的构建输出，并在下次启动时运行：
// in the run() function:
const dockerappcontainer = new docker.container(
"docker container - app",
{
name: "app",
image: dockerimagehetzner.imagename,
volumes: [
{
volumename: dockervolumeappbuild.name,
containerpath: "/app/.next",
},
],
networksadvanced: [
{ name: dockernetworkpublic.id },
{ name: dockernetworkinternal.id },
],
command: ["pnpm", "start"],
restart: "always",
},
{ provider: dockerserverhetzner, dependson: [dockerappbuildcontainer] }
);
部署并验证应用是否启动成功：
pnpm sst deploy sst ❍ ion 0.1.90 ready! ➜ app: next-self-hosted stage: antonprudkohliad ~ deploy | created docker container - app docker:index:container (1.1s) ✓ complete ssh root@116.203.183.180 -i ./id_ed25519_hetzner -o stricthostkeychecking=no -c "docker logs -f app" > next-self-hosted@ start /app > next start ▲ next.js 14.2.5 - local: http://localhost:3000 ✓ starting... ✓ ready in 497ms
应用程序容器可能会失败，因为构建容器尚未完成构建，但它很快就会恢复并正常运行。
为了将文件上传到vps，我们需要安装命令提供程序和polumi包：
pnpm sst add @pulumi/command pnpm add -d @pulumi/pulumi pnpm install
确保 vps 上存在 /root/app 和 /root/app/certs 目录并上传 cloudflare origin server 证书：
// at the top of the file
import { asset as pulumiasset } from "@pulumi/pulumi";
// in the run() function:
// make sure that app directory exists
new command.remote.command("command - ensure app directory", {
create: "mkdir -p /root/app",
connection: {
host: server.ipv4address,
user: "root",
privatekey: sshkeylocal.privatekeyopenssh,
},
});
// make sure that app/certs directory exists
new command.remote.command("command - ensure app/certs directory", {
create: "mkdir -p /root/app/certs",
connection: {
host: server.ipv4address,
user: "root",
privatekey: sshkeylocal.privatekeyopenssh,
},
});
// copy certificates to the vps
new command.remote.copytoremote(
"copy - certificates - key",
{
source: new pulumiasset.fileasset(
pathresolve("./certs/cloudflare.key.pem")
),
remotepath: "/root/app/certs/cloudflare.key.pem",
connection: {
host: server.ipv4address,
user: "root",
privatekey: sshkeylocal.privatekeyopenssh,
},
}
);
new command.remote.copytoremote(
"copy - certificates - cert",
{
source: new pulumiasset.fileasset(
pathresolve("./certs/cloudflare.cert.pem")
),
remotepath: "/root/app/certs/cloudflare.cert.pem",
connection: {
host: server.ipv4address,
user: "root",
privatekey: sshkeylocal.privatekeyopenssh,
},
}
);
new command.remote.copytoremote(
"copy - certificates - authenticated origin pull",
{
source: new pulumiasset.fileasset(
pathresolve("./certs/authenticated_origin_pull_ca.pem")
),
remotepath: "/root/app/certs/authenticated_origin_pull_ca.pem",
connection: {
host: server.ipv4address,
user: "root",
privatekey: sshkeylocal.privatekeyopenssh,
},
}
);
复制 nginx 配置文件到 vps 并启动 nginx 容器：
// in the run() function:
// copy nginx config to the vps
const commandcopynginxconfig = new command.remote.copytoremote(
"copy - nginx config",
{
source: new pulumiasset.fileasset(
pathresolve("./nginx/production.conf")
),
remotepath: "/root/app/nginx.conf",
connection: {
host: server.ipv4address,
user: "root",
privatekey: sshkeylocal.privatekeyopenssh,
},
}
);
// run the nginx container
const dockernginxcontainer = new docker.container(
"docker container - nginx",
{
name: "app_container_nginx",
image: "nginx:1.27.0-bookworm",
volumes: [
{
hostpath: "/root/app/nginx.conf",
containerpath: "/etc/nginx/nginx.conf",
},
{
hostpath: "/root/app/certs",
containerpath: "/certs",
},
],
command: ["nginx", "-g", "daemon off;"],
networksadvanced: [{ name: dockernetworkpublic.id }],
restart: "always",
ports: [
{
external: 443,
internal: 443,
},
],
healthcheck: {
tests: ["cmd", "service", "nginx", "status"],
interval: "30s",
timeout: "5s",
retries: 5,
startperiod: "10s",
},
},
{ provider: dockerserverhetzner, dependson: [dockerappcontainer] }
);
return { ip: server.ipv4address };
部署并验证 nginx 容器是否正在运行：
pnpm sst deploy sst ❍ ion 0.1.90 ready! ➜ app: next-self-hosted stage: antonprudkohliad ~ deploy | deleted docker container - app build docker:index:container | created command - ensure app/certs directory command:remote:command | created command - ensure app directory command:remote:command | created docker container - app build docker:index:container | created copy - certificates - cert command:remote:copytoremote (1.2s) | created copy - nginx config command:remote:copytoremote (1.2s) | created copy - certificates - key command:remote:copytoremote (1.2s) | created copy - certificates - authenticated origin pull command:remote:copytoremote (1.2s) | deleted docker container - app docker:index:container | created docker container - app docker:index:container (1.2s) | created docker container - nginx docker:index:container (7.1s) ✓ complete ip: 116.203.183.180 ssh root@116.203.183.180 -i ./id_ed25519_hetzner -o stricthostkeychecking=no -c "docker ps -a" container id image command created status ports names 9c2cb18db304 nginx:1.27.0-bookworm "/docker-entrypoint.…" 3 minutes ago up 3 minutes (healthy) 80/tcp, 0.0.0.0:443->443/tcp app_container_nginx 32e6a4cee8bc next-self-hosted/next-self-hosted:latest "docker-entrypoint.s…" 4 minutes ago up 3 minutes 3000/tcp app f0c50aa32493 next-self-hosted/next-self-hosted:latest "docker-entrypoint.s…" 4 minutes ago exited (0) 3 minutes ago app_container_build
可以看到，nginx 和应用程序运行顺利。
是时候确保 dns 记录指向正确的 ip 地址了（是的，也可以通过 cloudflare 提供商将其添加到 sst 配置中）：

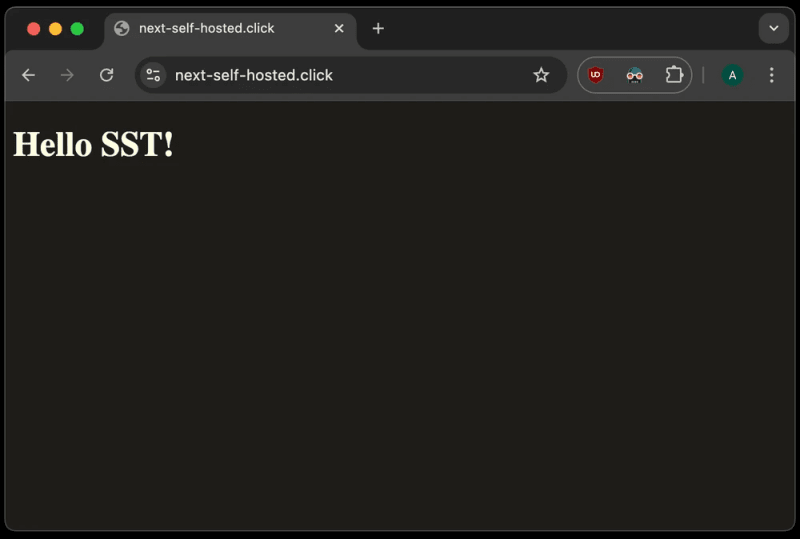

然后，我们可以打开应用程序并验证它是否有效：
恭喜！我们现在已经完成了 sst 潜水，可以享受新部署的应用程序了?
sst 使得清理变得非常容易 – 只需运行 pnpm sst remove ，整个设置就会消失：
pnpm sst remove SST ❍ ion 0.1.90 ready! ➜ App: next-self-hosted Stage: antonprudkohliad ~ Remove | Deleted Docker Container - Nginx docker:index:Container (1.9s) | Deleted Docker Container - App docker:index:Container | Deleted Docker Container - App Build docker:index:Container | Deleted Docker Image - App - Hetzner docker:index:Image | Deleted Docker Volume - App Build docker:index:Volume (2.1s) | Deleted Docker Network - Public docker:index:Network (3.1s) | Deleted Docker Network - Internal docker:index:Network (3.2s) | Deleted Copy - Nginx Config command:remote:CopyToRemote | Deleted Docker Server - Hetzner pulumi:providers:docker | Deleted Copy - Certificates - Authenticated Origin Pull command:remote:CopyToRemote | Deleted Command - Ensure app/certs directory command:remote:Command | Deleted Copy - Certificates - Key command:remote:CopyToRemote | Deleted Command - Ensure app directory command:remote:Command | Deleted Copy - Certificates - Cert command:remote:CopyToRemote | Deleted Server hcloud:index:Server (16.8s) | Deleted SSH Key - Hetzner hcloud:index:SshKey | Deleted SSH Key - Local tls:index:PrivateKey ✓ Removed
